Water Treatment

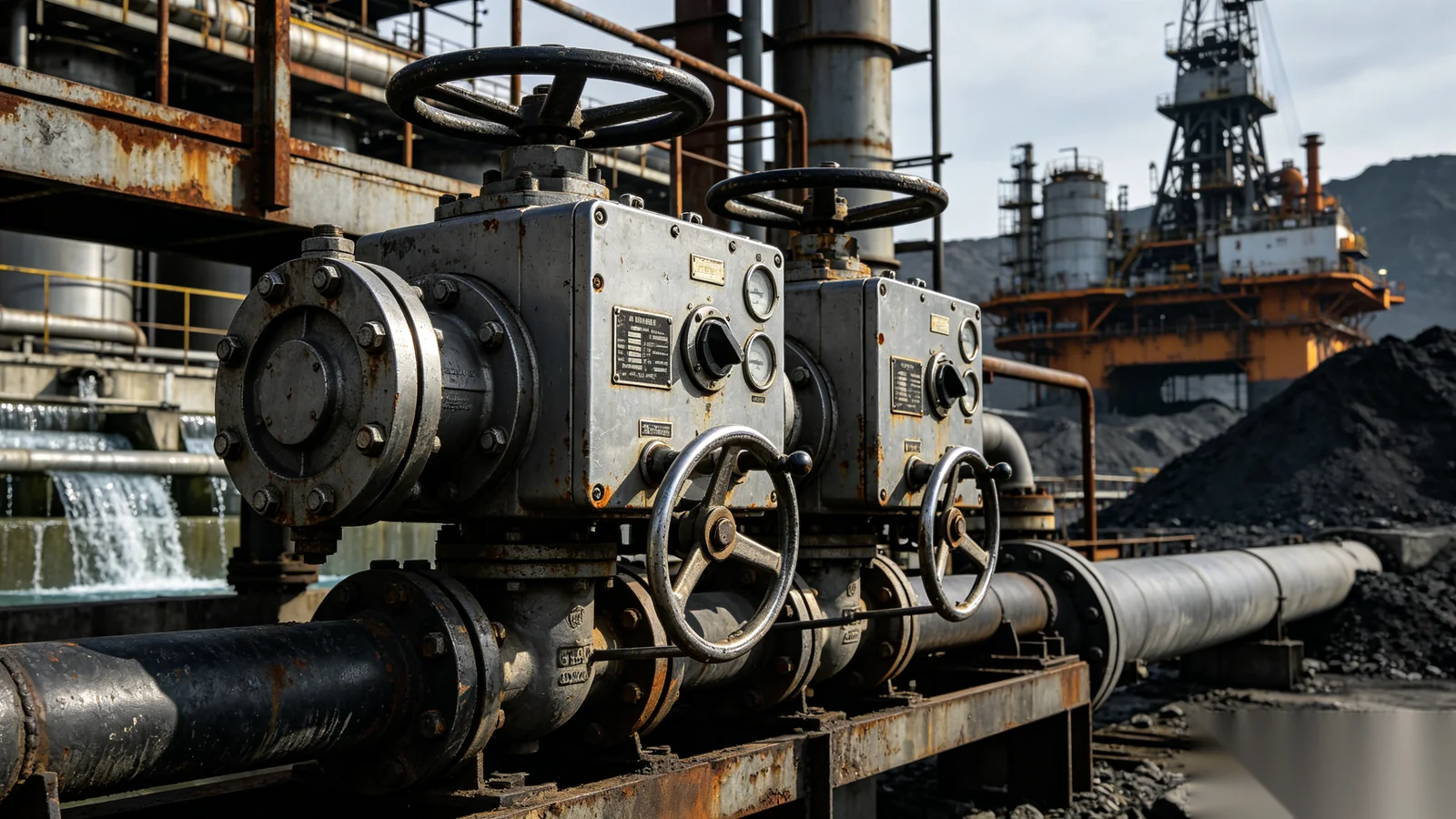

Outdoor distribution, intake, and process valves exposed to rain and washdown.
IP67 · Dust-tight · Temporary Immersion
IP67 worm gear operators are dust-tight and protected against temporary immersion in water to 1 metre for 30 minutes, per IEC 60529. They suit outdoor pipelines, valve pits, loading racks, and water treatment plants where rain, dust, and occasional flooding would damage an unsealed operator. Confirm the selected model's holding performance and mounting dimensions separately.
Before you specify
Use IP67 where its documented dust and temporary-immersion protection matches the project exposure. Verify the exact unit’s sealing evidence and installation conditions.
| Selection check | Required input |
|---|---|
| Exposure | Describe rain, standing water, washdown and any expected immersion. |
| Evidence | Check that the test record covers the offered model and seal configuration. |
| Other conditions | Specify jets, corrosion and temperature separately; an immersion code alone does not establish these properties. |
Download selection worksheet (PDF) Check the part-turn interface · Request a configuration review
References: Technical scope and product reference. Manufacturer documents describe their own products; confirm the exact offered configuration.
Application Foundation
An IP67 worm gear operator carries an ingress protection rating of 6 for dust and 7 for water under IEC 60529 — fully dust-tight and able to withstand temporary immersion in water to 1 metre depth for 30 minutes. Confirm the complete enclosure rating for the actual exposure. Immersion testing does not by itself establish water-jet or pressure-wash performance.
IP67 operators use O-ring housing joints, sealed stem glands, and coated exterior surfaces to keep moisture out. Confirm holding performance and mounting dimensions for the selected model. Per-model torque and dimensional specifications are confirmed per order — declare the valve torque, environment, and any immersion exposure when requesting a quote.
Engineering Data
| IP Code | Dust Protection (1st digit) | Water Protection (2nd digit) | Typical Valve Operator Use |
|---|---|---|---|
| IP65 | 6 — dust-tight | 5 — water jets from any direction | Washdown areas, sheltered outdoor |
| IP67 | 6 — dust-tight | 7 — temporary immersion to 1 m, 30 min | Outdoor pits, loading racks, exposed pipe bridges |
| IP68 | 6 — dust-tight | 8 — continuous immersion at stated depth/pressure | Wet wells, sewage lift stations, submerged tank-bottom valves |
Definitions per IEC 60529 (the international standard for IP enclosure ratings). The depth and duration for IP68 are manufacturer-declared against the project test protocol — declare immersion depth, media, and temperature when requesting a quote. No product-specific torque figures are implied by this table.
| ISO 5211 Flange | Typical Valve Size Band* | Common Valve Families | Reference Entries Offering This Flange |
|---|---|---|---|
| F05 | Small bore | Ball, plug, small butterfly | M07 |
| F07 | Small–medium bore | Butterfly (wafer), ball, plug | M07, M10 |
| F10 | Medium bore | Butterfly, ball, plug | M10, M12 |
| F12 | Medium bore | Butterfly (lug), ball, gate top-work | M12, M14 |
| F14 | Medium–large bore | Butterfly, trunnion ball, gate | M12, M14, M14A, M15 |
| F16 | Large bore | Butterfly (double flange / AWWA), ball, gate | M14, M14A, M15, M16 |
| F25 | Heavy / large bore | Large AWWA butterfly, high-pressure ball, large gate | M16 |
*Valve size band is indicative only — actual flange depends on the valve manufacturer's top-work, stem, and torque rating. Flange and legacy single-stage reference data are from the legacy reference catalog (M07–M16, 200–4,400 N·m). The reference catalog also contains separate higher-torque series; these are not IP67 or IP68 test declarations. Confirm the exact flange against your valve datasheet.
Per-model specifications (dimensions, weights, drive-bushing details, material grades): available on request — request a datasheet. Send your valve tag, bore, pressure class, environment class, and required output torque and we review the details and prepare a model recommendation with the matching ISO 5211 / ISO 5210 interface.
Operation
IP67 is an ingress protection code from IEC 60529. The first digit, 6, means the operator is completely dust-tight. The second digit, 7, means it withstands temporary immersion in water to 1 metre for 30 minutes without harmful ingress. Specify water-jet exposure separately from the temporary immersion requirement.
IP67 is not rated for continuous submersion — that requires IP68. Where a valve sits in a wet well, sump, or tank bottom that floods for extended periods, specify an IP68 operator instead. For exposed outdoor pipelines, valve pits, and loading racks that see rain and occasional flooding, IP67 is the appropriate rating.
Engineering
By Industry
Outdoor distribution, intake, and process valves exposed to rain and washdown.
Exposed pipeline and loading-rack isolation valves in the field.
Outdoor cooling-water and service-water valves.
Valve pits, chambers, and bunds subject to occasional flooding.
Common Questions
An IP67 operator withstands temporary immersion in water to 1 metre depth for 30 minutes, per IEC 60529 — enough for short-term flooding of a valve pit or bund. It is not rated for continuous submersion. For valves that sit in a wet well, sump, or tank that stays flooded, specify an IP68 operator designed for continuous immersion.
IP67 is dust-tight and protected against temporary immersion to 1 metre for 30 minutes, but it is not unconditionally waterproof. Prolonged submersion, high-pressure jets beyond the test, or seal degradation can allow ingress. For continuous underwater service choose IP68; for outdoor service, confirm rain, jet exposure and flooding requirements against the complete test declaration.
Both ratings are dust-tight (first digit 6). IP67 withstands temporary immersion to 1 metre for 30 minutes; IP68 withstands continuous immersion at a manufacturer-declared depth and duration. Choose IP67 for outdoor and occasionally flooded installations, and IP68 for valves that operate permanently submerged, such as in wet wells and tank bottoms.
IP67 worm gear operators are used outdoors and in exposed industrial settings — pipeline isolation valves, valve pits, loading racks, water treatment plants, and municipal chambers. Confirm the declared dust, immersion and any separate jet-test ratings for the installation. For permanently submerged valves, an IP68 operator is specified instead.
An IP rating describes enclosure protection, not resistance to backdriving. Confirm self-locking or other holding provisions for the selected gearbox, including load, vibration, lubrication and operating conditions.
Send your valve torque, mounting flange, and outdoor exposure details. We confirm IP67 sealing, corrosion finish, and a model recommendation, with per-model specifications on request.
Specify the required torque, mounting drawing, operating environment and inspection documents together. A standard describes a classification or interface; the selected model needs its own confirmed specification.
For immersion duty, record the depth, duration, water conditions and seal arrangement. Specify cleaning jets separately. IP ratings do not establish corrosion resistance, and ISO flange compatibility does not establish gearbox output torque.
